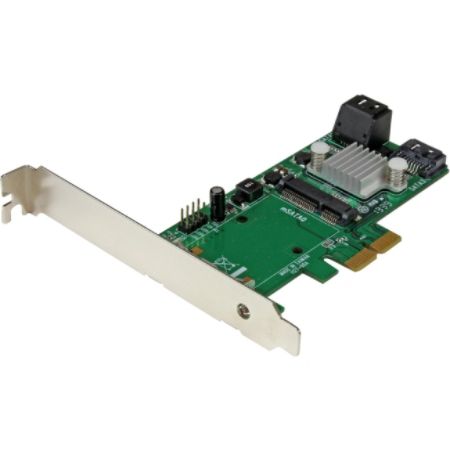

StarTech.com 3 Port PCI Express 2.0 SATA III 6 Gbps RAID Controller Card w/ mSATA Slot and HyperDuo SSD Tiering Item # 4002066

 |
StarTech.com 3 Port PCI Express 2.0 SATA III 6 Gbps RAID Controller Card w/ mSATA Slot and HyperDuo SSD Tiering
$ 90 .49 / each $90.49
In Stock
Free delivery
Estimated delivery 3-7 business days

    Description

    Add 1 internal mSATA slot and 3 internal SATA III (6Gbps) ports to a computer through a PCI Express x2 slot. The PEXMSATA343 3-Port PCI Express 2.0 SATA Card with HyperDuo adds an internal mSATA SSD (Solid State Drive) slot plus three internal SATA III ports to your computer through a PCIe x2 slot, adding multiple 6 Gbps internal connections that enable you to improve the overall speed and storage capacity of your computer by connecting high-performance SSDs and hard drives.Featuring HyperDuo technology, the SATA card offers SSD auto-tiering which lets you balance the performance advantages of SSD storage with the cost-effectiveness and large capacity of standard hard drives. By combining SSD and HDD drives into a single volume (up to 3 SSD + 1 HDD), HyperDuo discreetly works in the background to identify and move frequently accessed files to the faster SSD drive(s) for improved data throughput - up to 80% of SSD performance! (Note: The HyperDuo automatic storage tiering feature is compatible with computers that use a BIOS.)The PCIe SATA controller card offers Port Multiplier (PM) support, so multiple SATA drives can be connected over a single cable, for a total of 7 drives (Up to 4 drives through PM on one port, and a single drive to the remaining 2 ports and mSATA slot). Plus, the SATA controller card offers an effective hardware RAID solution, with native RAID (0, 1) support.You can install a SSD directly to the card via a convenient metal latching clip to help relieve the internal space constraints often associated with multiple hard drive configurations. Plus the controller card also includes a low profile/half-height installation bracket for small form factor (SFF) systems.

    Back To Top

    Product Details

    Item # 4002066
    Manufacturer # VT5410
    RAID Levels JBOD; 0; 1; 10; 1+0
    height 4.7 in
    thickness 0.8"
    Total Number of SATA Ports 3
    quantity 1
    width 0.8 in
    package contents PCIe SATA Controller Card; 1 x Low Profile Bracket; 1 x Driver CD; 1 x Instruction Manual
    depth 4.5 in
    Product Name PCIe SATA Controller Card
    manufacturer StarTech.com
    Host Interface PCI Express 2.0 x2
    Number of mSATA Interfaces 1
    weight 1.90 oz
    RAID Supported Yes
    brand name StarTech
    controller type Serial ATA/600
    Number of SATA Ports (Internal) 3
    Platform Supported Mac; PC
    form factor Plug-in Card
    warranty length 2-year limited
